Mister Hitches - SHORT SHANK - Adjustable Tow Hitch 4000Kg | 12 Stage Ball Mount (Heavy Duty) - Ford Ranger (MHABM-5XHDS)

Mister Hitches - SHORT SHANK - Adjustable Tow Hitch 4000Kg | 12 Stage Ball Mount (Heavy Duty) - Ford Ranger (MHABM-5XHDS)

Regular price $175.00 AUD
Regular price Sale price $175.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Established May 2012

Customer Support Available

Ships in 1 Business Day

Description

Mister Hitches -  Short Shank Adjustable Tow Hitch 4000Kg | 12 Stage Ball Mount (Heavy Duty) Ford Ranger C ompatible

Looking for a heavy-duty and versatile towing solution that can handle the toughest jobs? Look no further than Mister Hitches - Adjustable Tow Hitch 4000Kg | 12 Stage Ball Mount (Heavy Duty).
this is a short shank version of the popular model ans suitable for a short shanked town bar like the Ford Ranger. The hitch has a 25mm x 75mm ball platform and is one of the only few ball mounts that is suitable for a Stone Stomper

Features & Benefits:

    • ADJUSTABLE & FULLY REVERSIBLE - 12 STAGES
    • BOTH PARTS OF THE HITCH ARE REVERSIBLE
    • 6 STAGES OF DROP - 80MM/110MM/130MM/140MM/160MM/190MM
    • 6 STAGES OF RISE - 50MM/80MM/105MM/110MM/135MM/165MM

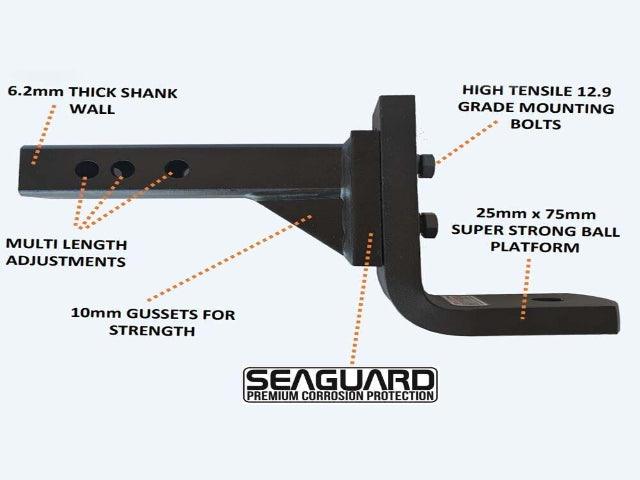

    • 10MM DUAL SUPPORT GUSSETS FOR ADDED STRENGTH
    • NEW MODEL WITH SHORT LENGTH SHANK (RANGER SHALLOW RECEIVER COMPATIBLE PIN HOLE ) (50mm from end of shank))
    • USES 12.9 GRADE HIGH TENSILE 16MM BOLTS (TORQUE to 189Nm)
    • 25MM X 75MM HEAVY DUTY BALL PLATFORM.
    • MATT BLACK SEAGUARD FINISH
    • 5.75mm THICK STEEL SHANK
    • ROBOTIC WELDED FOR CONSISTENT QUALITY
    • CNC MACHINED FOR MAXIMUM ACCURACY
    • FITS 2" X 2" TOWBAR RECEIVERS
    • ADR62 COMPLIANT
    • ORIGINAL DESIGN BY MISTER HITCHES AUSTRALIA (NOT A COPY)

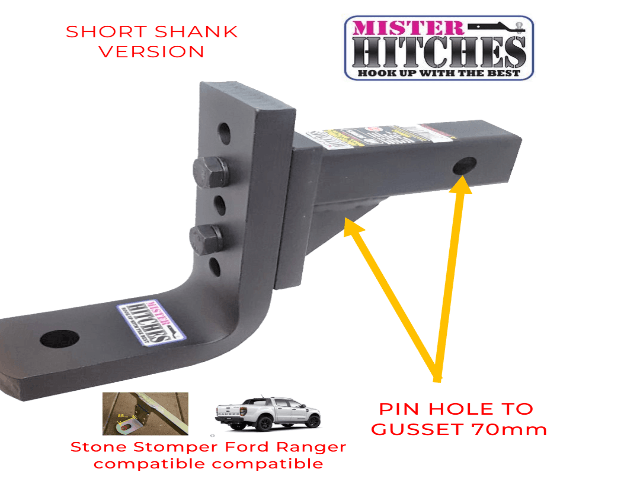

    PIN HOLE TO END OF SHANK 50MM

    END OF SHANK TO GUSSET 120MM

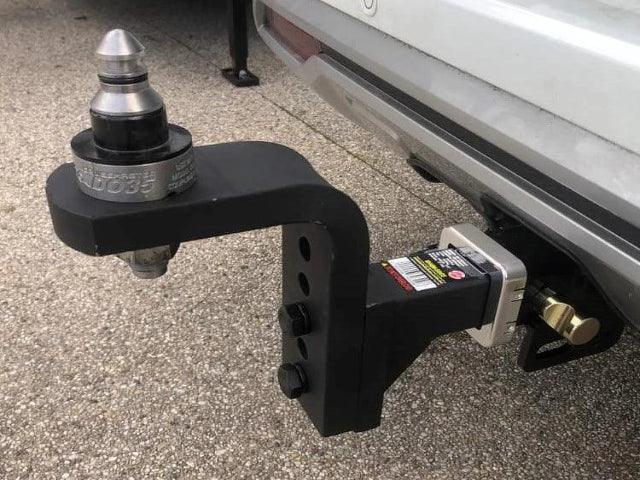

    SUITS STONE STOMPER UNDER BALL BRACKET & MOST COUPLINGS EG. D035

    MEASUREMENTS ARE APPROX.

Specifications:

  • Gross trailer weight: 4000kg
  • Tongue weight: 400kg
  • Ball hole size: 7/8”
  • Max drop: 190mm
  • Max rise: 165mm

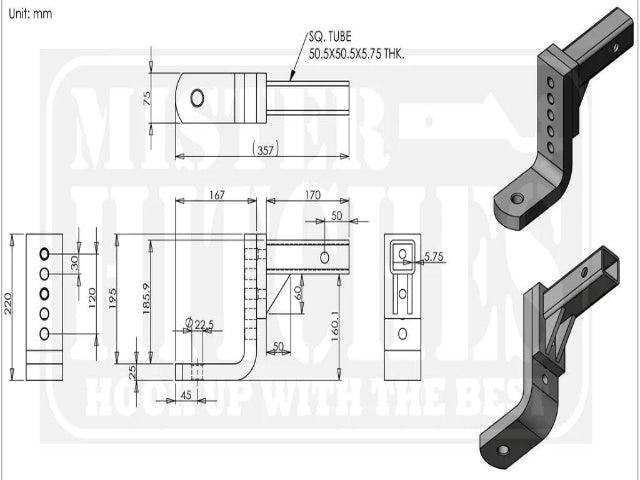

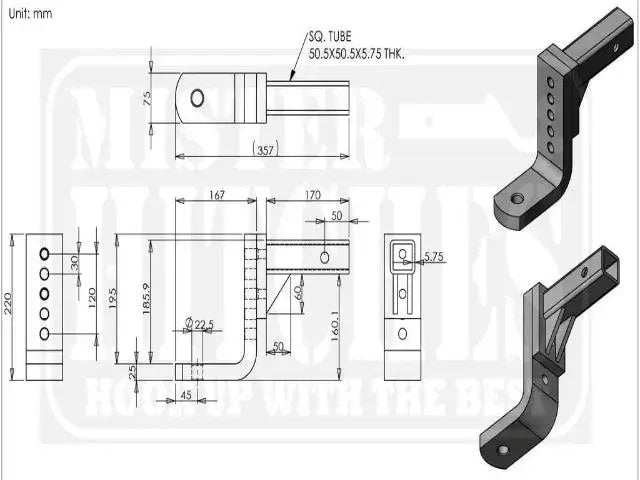

  • Length: 3262mm (measured from the centre of the pin hole to the centre of the ball hole)
  • PIN HOLE TO END OF SHANK 50MM

  • END OF SHANK TO GUSSET 120MM

  • SUITS STONE STOMPER UNDER BALL BRACKET & MOST COUPLINGS EG. D035

  • MEASUREMENTS ARE APPROX.

This tow hitch is perfect for anyone who needs to tow heavy equipment or a trailer. Whether you're heading out on a road trip to tow your caravan or just need to haul some gear, the Mister Hitches - Adjustable Tow Hitch 4000Kg | 12 Stage Ball Mount (Heavy Duty) has got you covered with ultimate in towing performance and versatility.
